Brad?Ultra-Lock?M12 Single Ended Male Cordsets
Brad?Ultra-Lock?M12 single ended male pigtail cordsets with push-to-lock PUR connectors and gold plated copper alloy contacts. These Brad?Ultra-Lock?M12 single ended male cordsets are available with straight (W04006, W08006) or right angle (W04007) connections with a choice of cable types and cable jackets.
Push-to-Lock mechanism for reliable connection
Positive locking for performance in high vibration environment
Sealing design enabling wash-down and use in temporary submersion applications
3,4 and 5 pole versions are intermatable
IP67, NEMA 6 rated
Note
Cable Types:
W0xxxxP03xxxx: Black PUR/PVC cable jacket, 0.34mm
2
PVC conductors, 300V, 80°C
W0xxxxE03xxxx: Yellow PVC jacket 0.34mm
2
PVC conductors, 300V, 80C, UL AWM 2464
W0xxxxH08xxxx: Black PUR jacket, 0.25mm
2
, PVC conductors, 300V, 80°C, Low Smoke/Zero Halogen (LS0H), UL AWM 2119
W0xxxxP45xxxx: Black PUR jacket, shielded
Standards
CSA File No: LR6837 (3,4 and 5 pole versions)

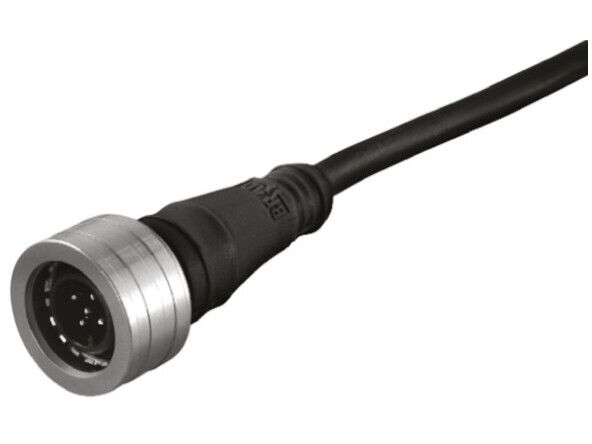

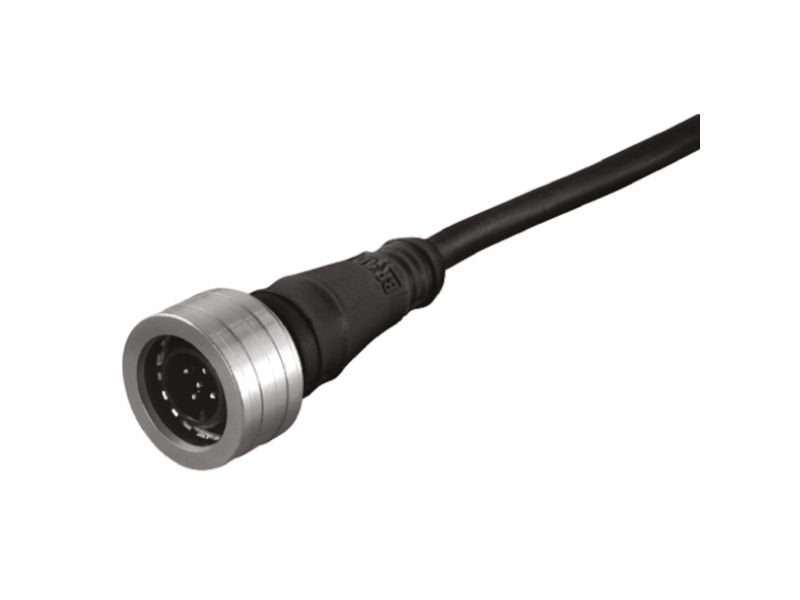

Brad from Molex Straight Male M12 to Free End Sensor Actuator Cable, 2m Length - Ultra-Lock Series - 1200790263
Connect your sensors and actuators to control equipment in harsh environments with this Brad from Molex cable. With an IP69K (ingress protection) rating, it's resistant to dust and high-pressure water jets at high temperatures. This makes it robust enough for use in extreme industrial conditions. A push-to-lock straight male connector on one end of the cable makes for a secure connection protected against tampering and vibrations. On the other end, there's a 4-core loose wire arrangement that's conveniently compatible with 3-core and 5-core cables.
Wide operating temperature range of -30°C to +80°C for use in challenging conditions
Light weight of 99g for easy handling
Polyvinyl chloride (PVC) cable jacket resists impact and abrasion
Cable length of 2m for easy access
Current rating of 4A for energy efficiency and low heat dissipation
Applications
Industrial boilers
High-pressure and low-pressure compressors
Marine industries
What's the purpose of the O-ring in this cable connector?
For enhanced performance, the O-ring in this cable connector provides additional protection from dust, water, oil and other contaminants.
BRAD - M12
