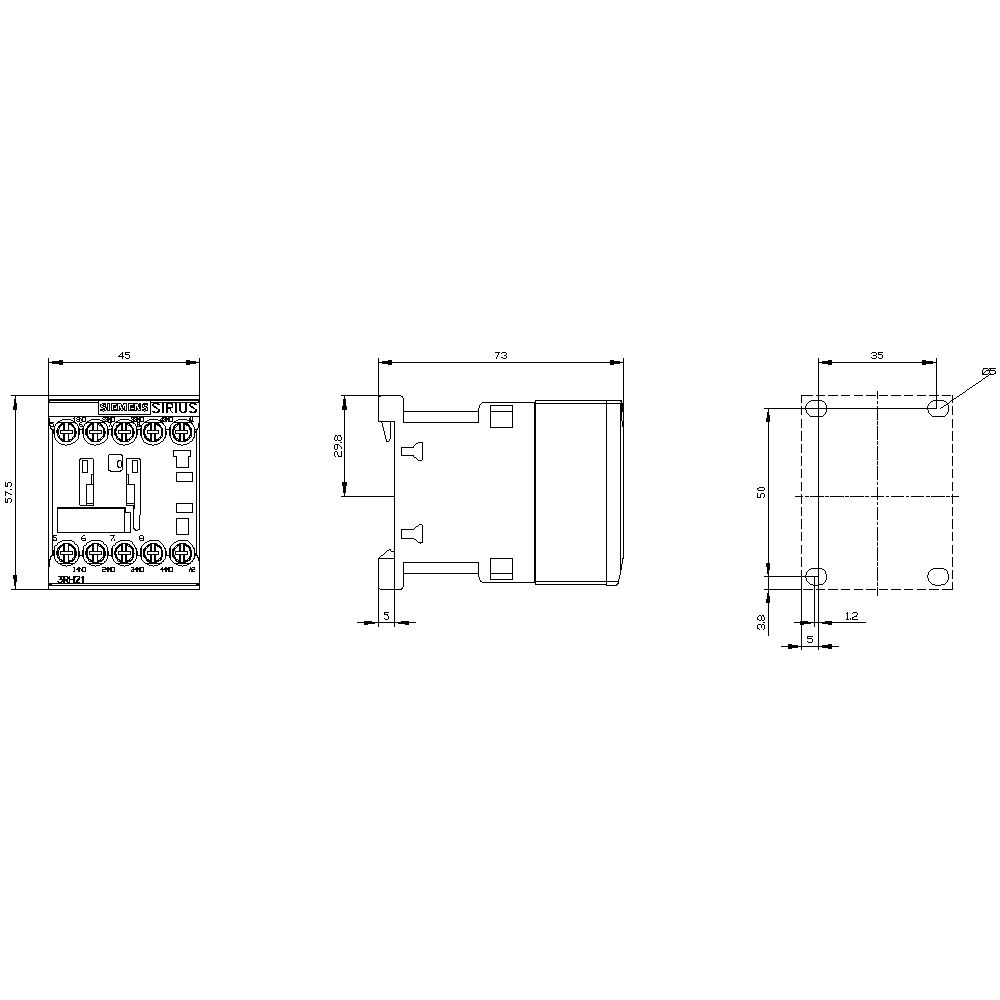

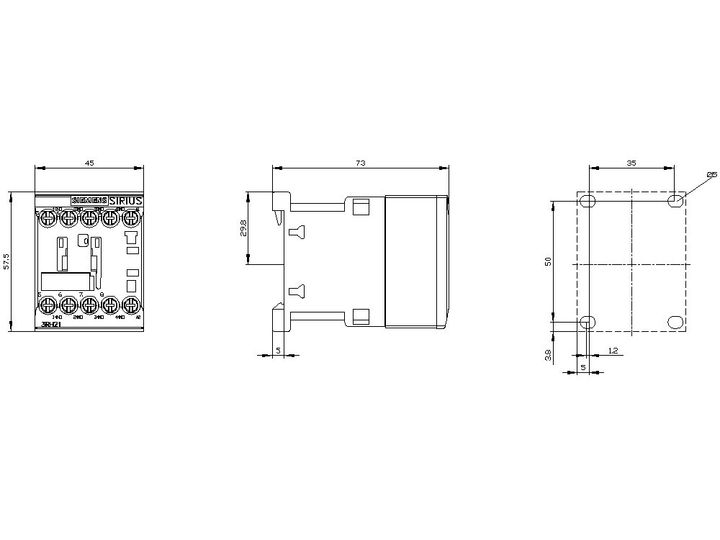

Siemens 3RH2140-1AP00, 57,5 mm, 50 mm, 61,5 mm, 77,5 mm, 230 g

Contactor Relays - 3RH2 Range
Climate-proof, finger safe contactor relays. RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all contactor relays for damping opening surges in the coil.
Size S00
High degree if contact stability at low voltages & current
Suitable for use with solid-state circuits with currents ?‰? 1 mA at a voltage of ?‰? 17 V
Capable of expansion by up to four contacts through use of snap-on auxiliary switch blocks
Note
The OFF-delay of the NO contact and the ON-delay of the NC contact are increased if the contactor coils are attenuated against voltage peaks (noise suppression diode 6 to 10 times; diode assemblies 2 to 6 times, varistor +2 to 5 ms).
Standards
IEC 60947-1, EN 60947-1, IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, EN 60947-5-1.

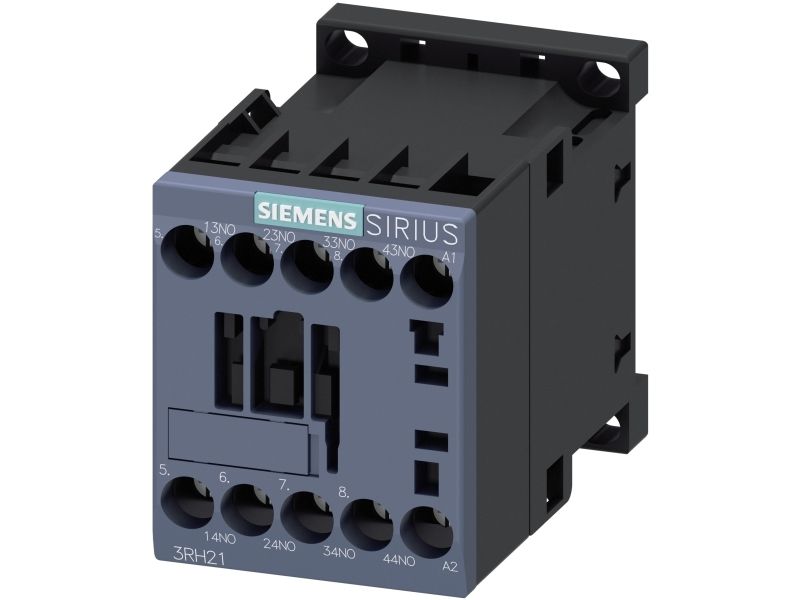

Siemens 3RH2 Series Contactor Relay, 690V AC Contact Voltage Rating, 4NO Normal State Configuration - 3RH2140-1AP00
This contactor relay is suitable for a variety of automation applications, providing reliable control of electrical circuits. With a coil voltage of 230V AC and a durable construction, it performs effectively in different environments, making it a key component in electrical and mechanical systems. Its configuration enhances safety, contributing to operational security for users.
Features & Benefits
- 4NO configuration for versatile circuit design
- 230V AC control voltage compatible with standard systems
- Rated for 10A current handling for multiple Applications
- High contact voltage rating of 690V AC suitable for demanding projects
- Easy installation with screw terminal connections
- Wide temperature range ensures functionality in various conditions
Applications
- Utilised in automation systems to manage motors and machinery
- Incorporated in safety devices to improve operational security
- Suitable for electrical distribution panels requiring dependable switching
- Employed in mechanical systems for accurate circuit control
What is the maximum temperature range for safe operation?
The device operates effectively up to a maximum of 60?°C, ensuring consistent performance in heated environments.
Can it be mounted in different orientations?
Yes, it supports both screw and snap-on installation, providing flexibility in configuration.
How does the number of poles affect its application?
Having four poles allows control of multiple circuits, enhancing its versatility for various tasks.
