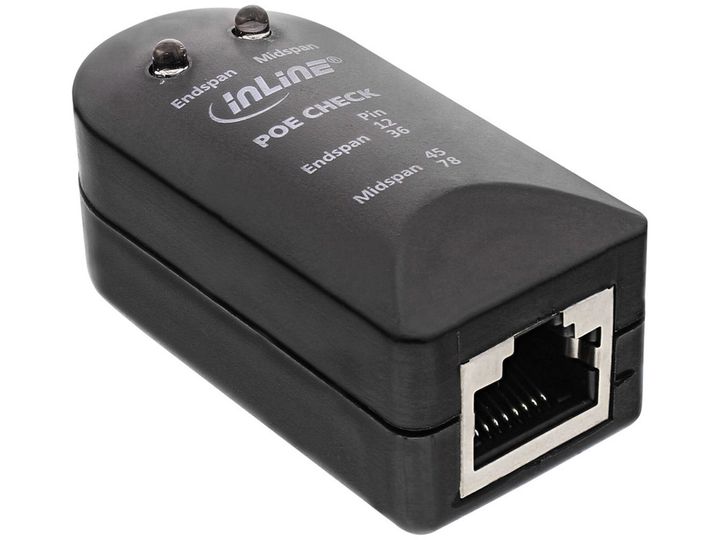

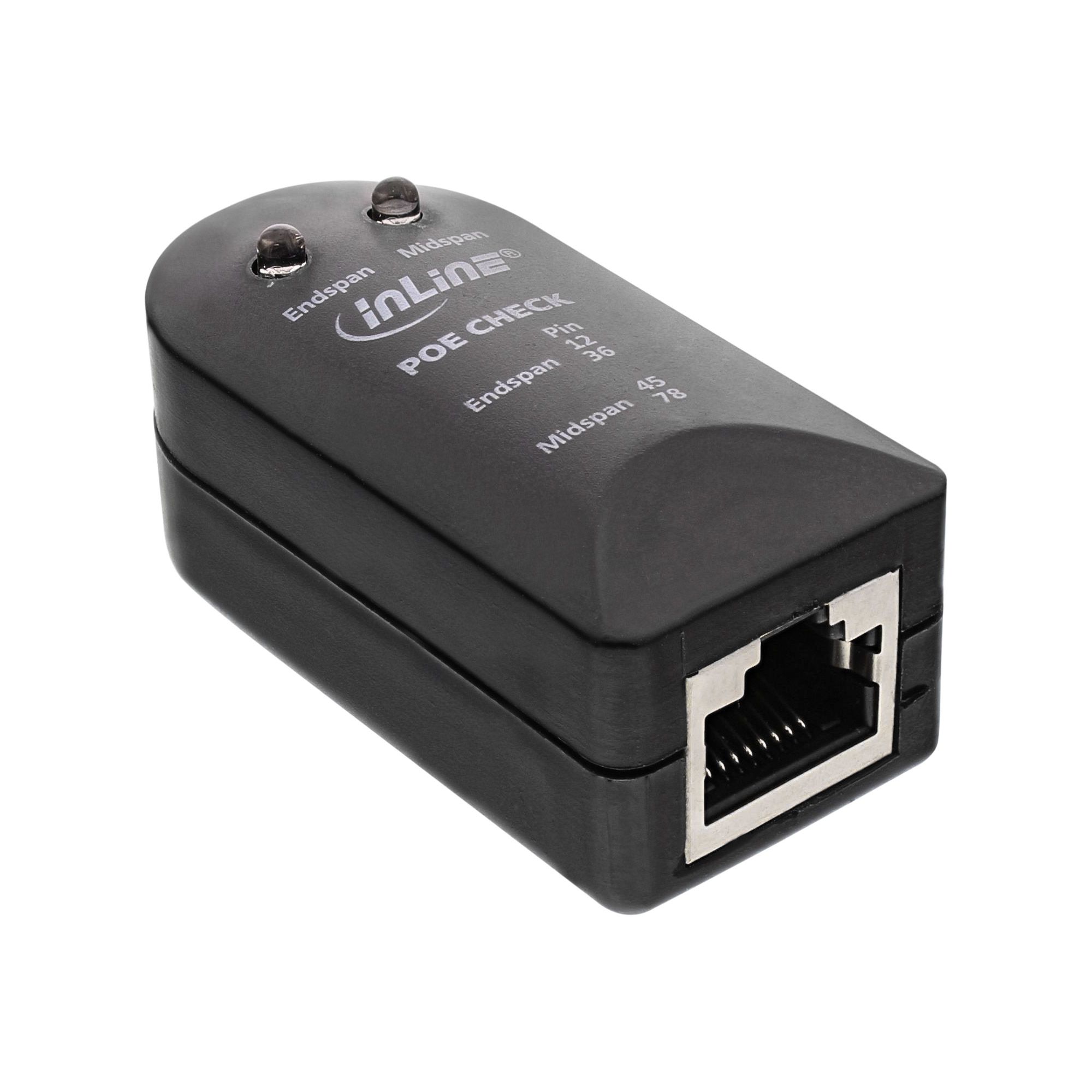

Fast PoE/PoE+ testing on RJ45 ports
Immediate status indication via LED:Endspan, Midspan, or no power at a glance.

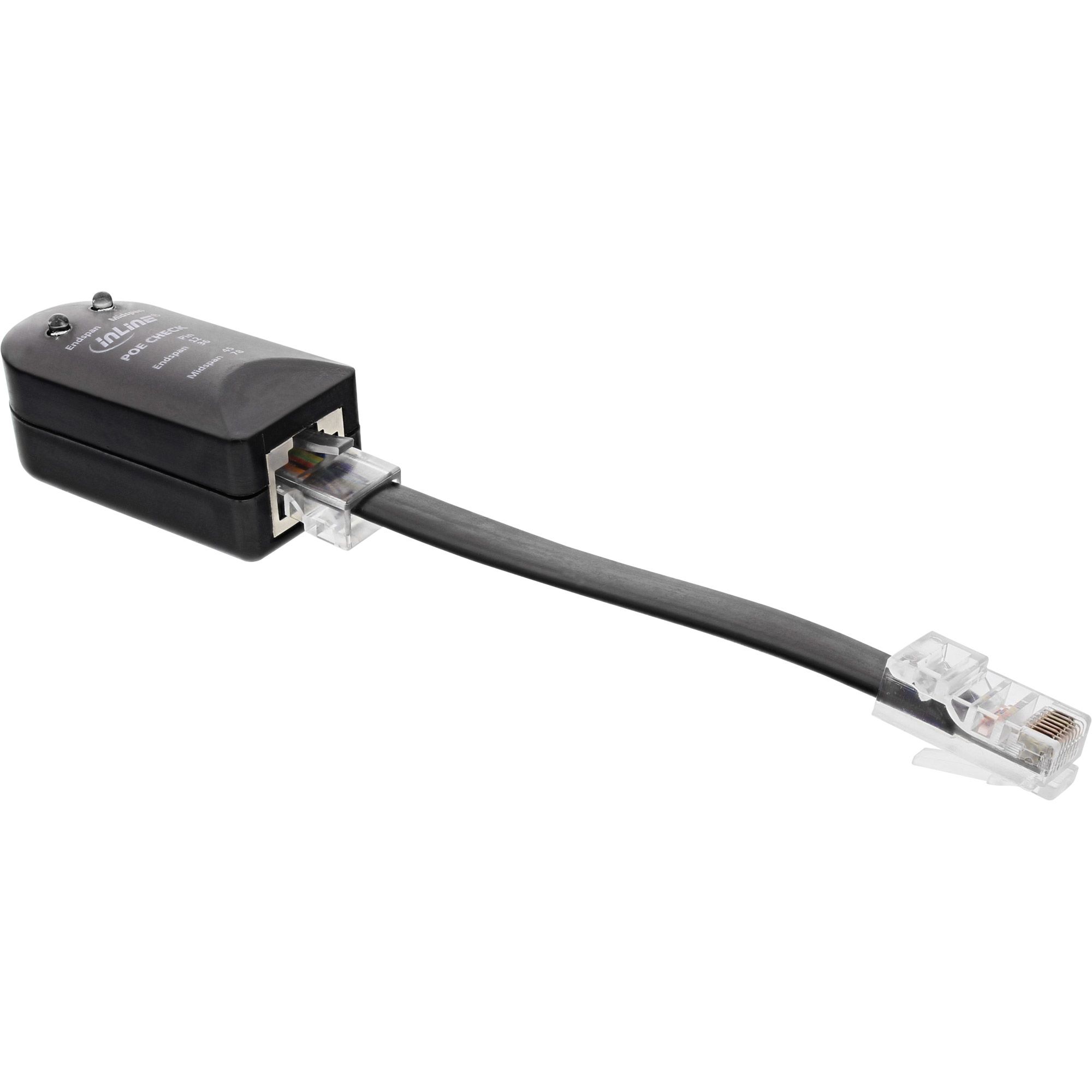

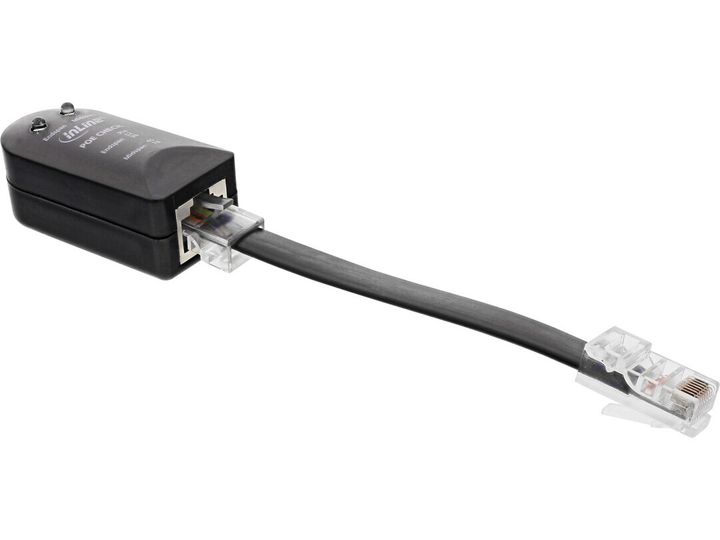

Simple testing without re-cabling:Plug in the included short RJ45 cable directly.
Standards-compliant PoE/PoE+ detection:Test according to IEEE 802.3af/at with 37-57 V at the socket.
Clear pin assignment per mode:Endspan on pins 1,2,3,6; Midspan on pins 4,5,7,8.
High isolation strength:> 1500 V AC supports safe working at the patch panel.
The PoE tester checks RJ45 ports for PoE/PoE+ according to IEEE 802.3af/at. Connect the tester's RJ45 socket with the included short cable and plug it into the port to be tested. The LEDs immediately indicate whether power is present in Endspan or Midspan mode, or no PoE voltage is available. This allows you to identify PoE voltages in the range 37-57 V quickly and without active end devices.
In professional IT environments, during on-site installations and in service deployment, the device speeds up testing and troubleshooting. It also provides clear results and structured documentation of PoE supply points in existing infrastructures of companies and public institutions.
Connector:RJ45 socket
Standard:IEEE 802.3af, IEEE 802.3at
PoE voltage range (tested):37-57 V
Detection via pins:Endspan 1,2,3,6; Midspan 4,5,7,8
Indication:LEDs for Endspan/Midspan/no power
Operating voltage:24-60 V AC/DC
Operating current:< 10 mA
Isolation voltage:> 1500 V AC
Scope of delivery:short RJ45 cable
