InLine 76623E, PCIe, RS-232, Hanstik, Lavprofil, Kina, 256 B
Varenr.: [26084449] | Producent: Inline | Model-nr.: 76623E | EAN: 4043718354450
Fjargoymsla (Veitingartíð til DK goymslu er 5-7 gerandisdagar)
Fjargoymsluvøra, veitingartíð til DK goymslu er 5-7 gerandisdagar. Eftir tað verður vøran send úr DK fyrstkomandi týsdag, og leverað í FO eftirfylgjandi týsdag. Meira kunning
Leveringsmuligheder - Vælges ved checkout
Heintast
ÓKEYPIS
Pakkaboks
29,00
Útbering.
95,00
DKK
570,00
Uttan MVG 456,00
Prísur við heinting í Tórshavn ella Klaksvík
570,00
Legg aftrat lista
Funktionen kræver at man er logget ind. Opret en bruger og brug vores smarte liste system til at holde styr på fremtidige indkøb, faste indkøb eller ønskelister.
Send på mail
PCIe x1 interface card with 4x RS-232 ports for reliable serial communication
Four serial interfaces:Extends compatible computer systems with four RS-232 ports and enables the simultaneous operation of multiple serial devices.
Reliable data transmission:The ASIX AX99100 controller supports full modem control signals, hardware and software flow control, and a 256-byte FIFO buffer per port for stable communication.
Flexible integration:The PCI Express x1 interface is compatible with x1, x4, x8 and x16 slots, enabling easy retrofitting of existing systems.
Versatile configuration:Freely configurable baud rates and extensive setting options for data bits and parity support a wide variety of serial applications.

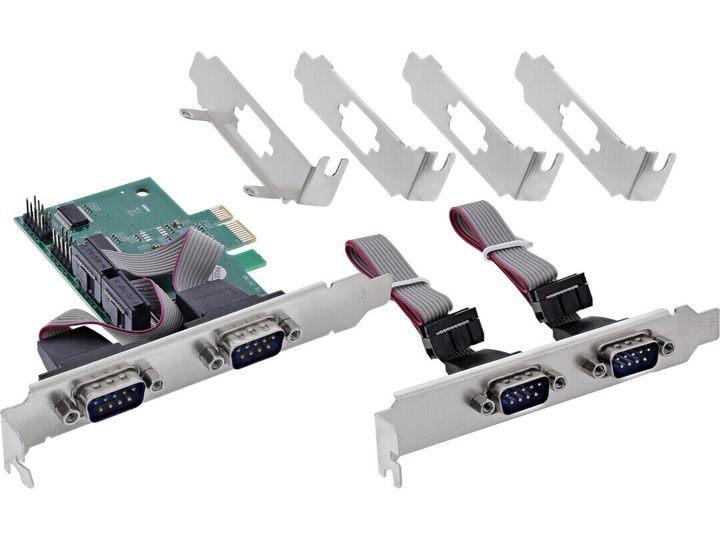

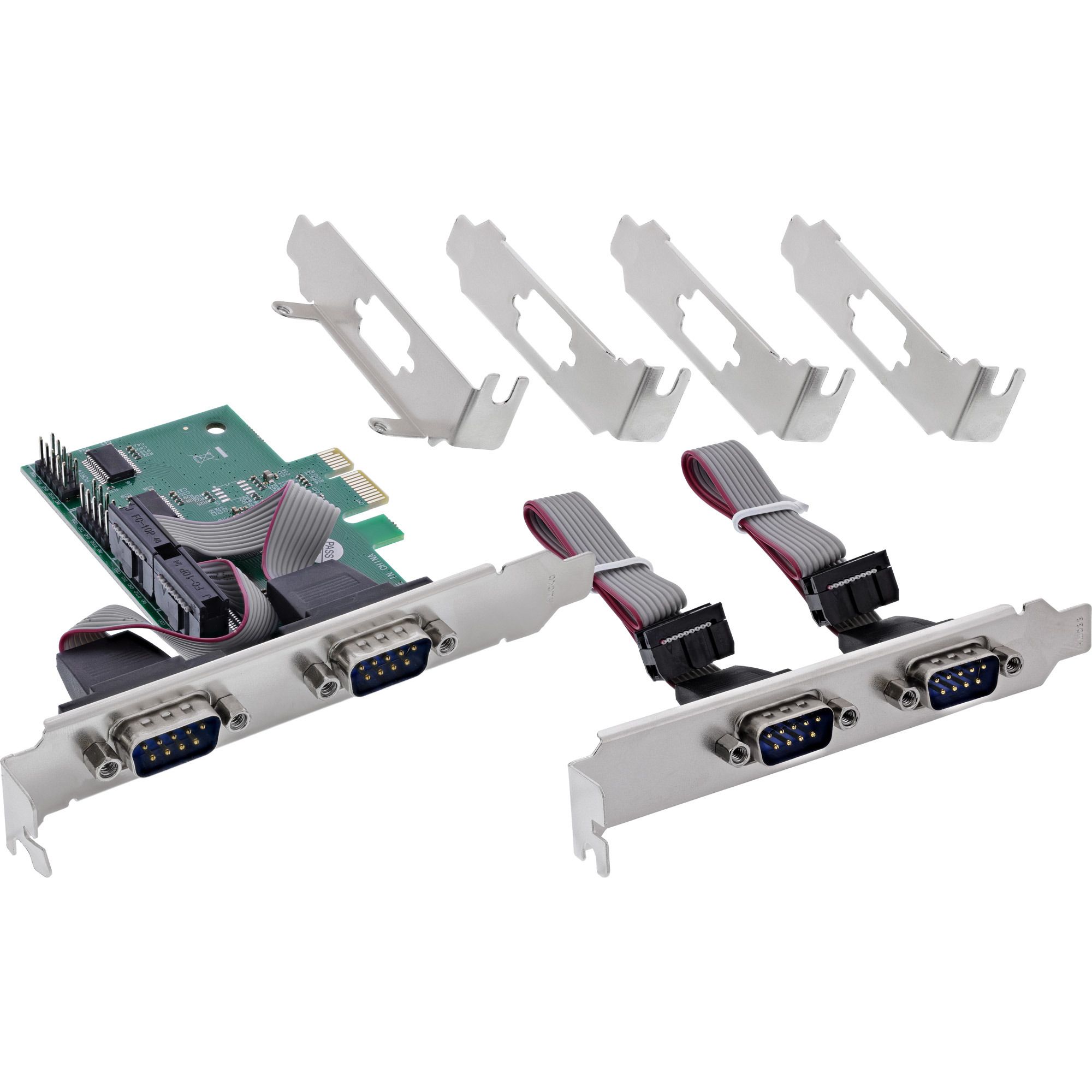

Space-saving installation:Thanks to the low-profile slot brackets supplied, the card is also suitable for compact computer systems.

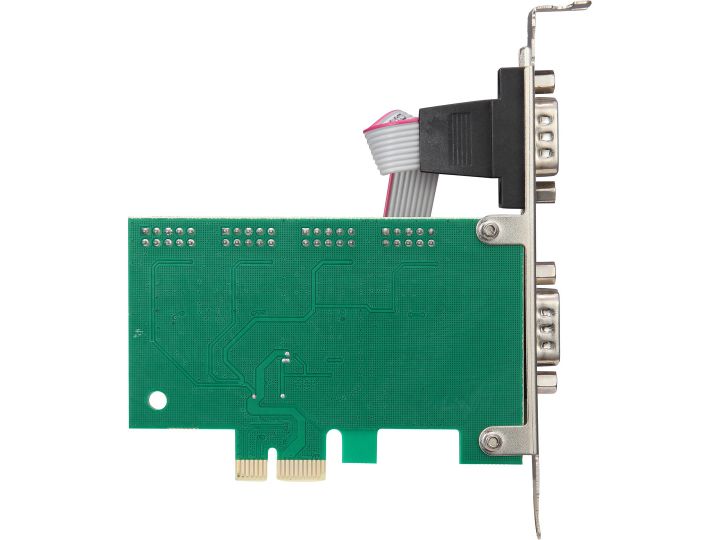

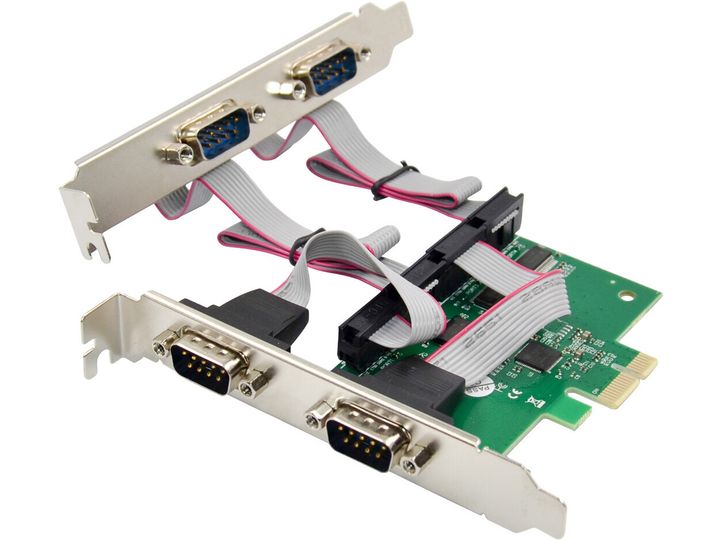

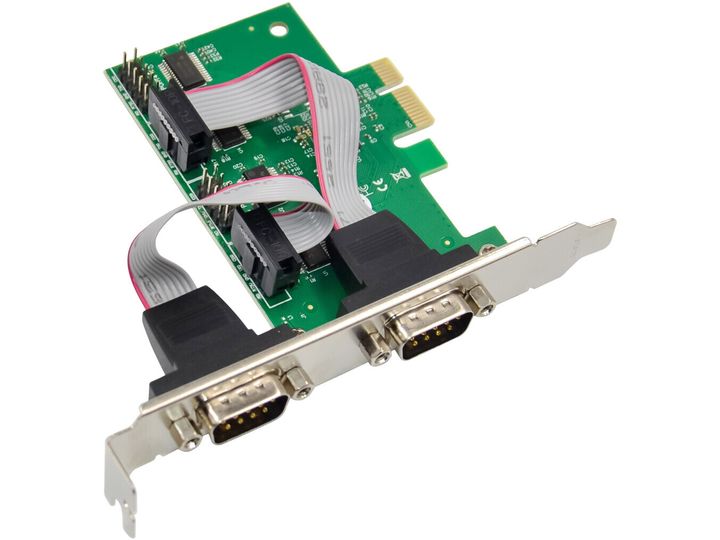

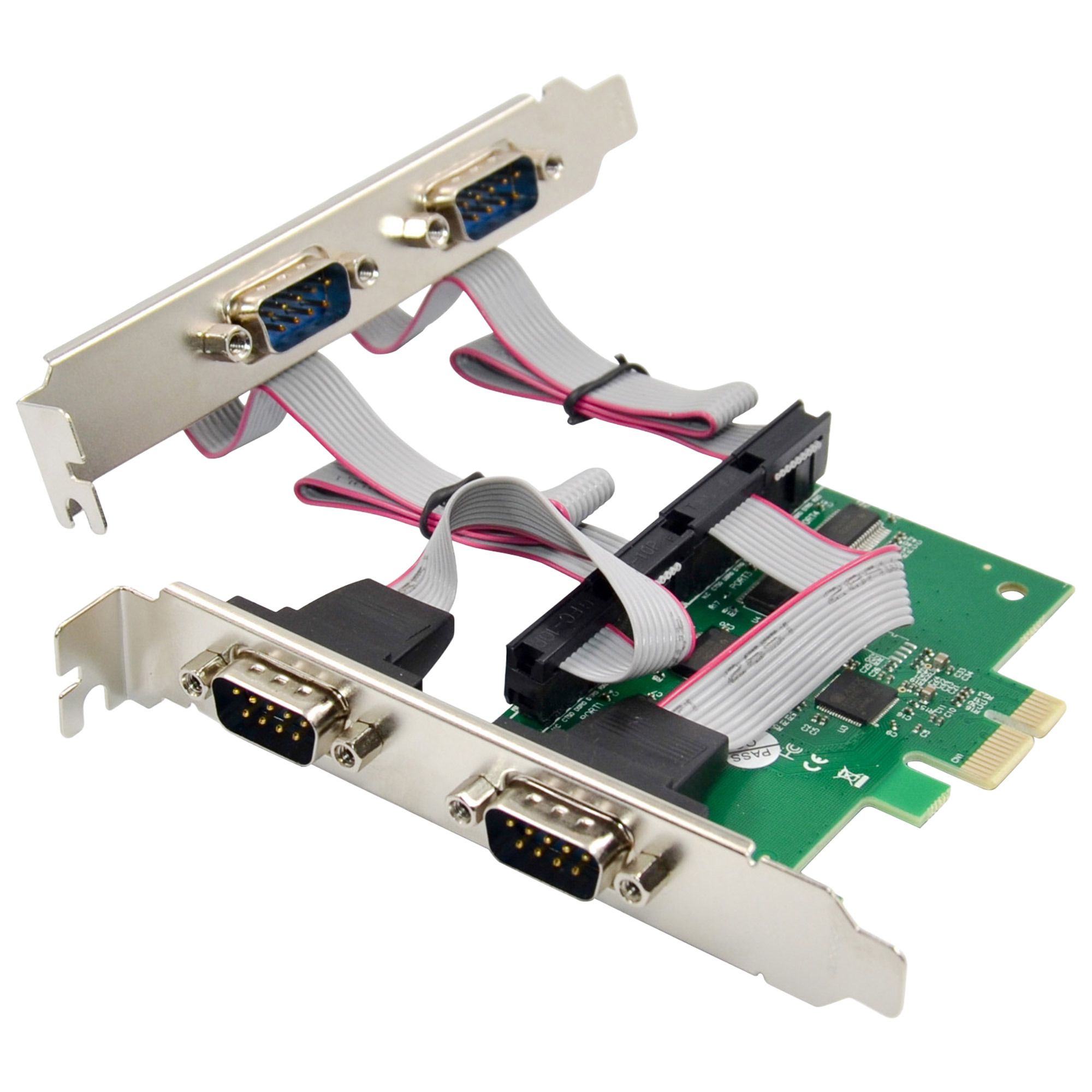

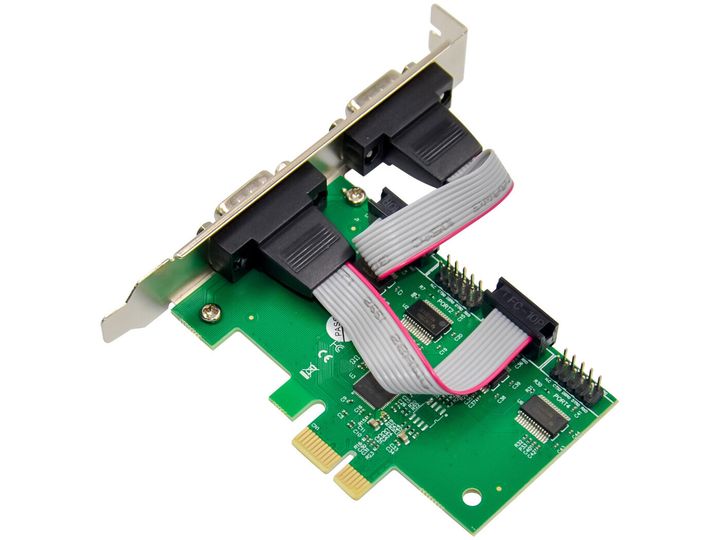

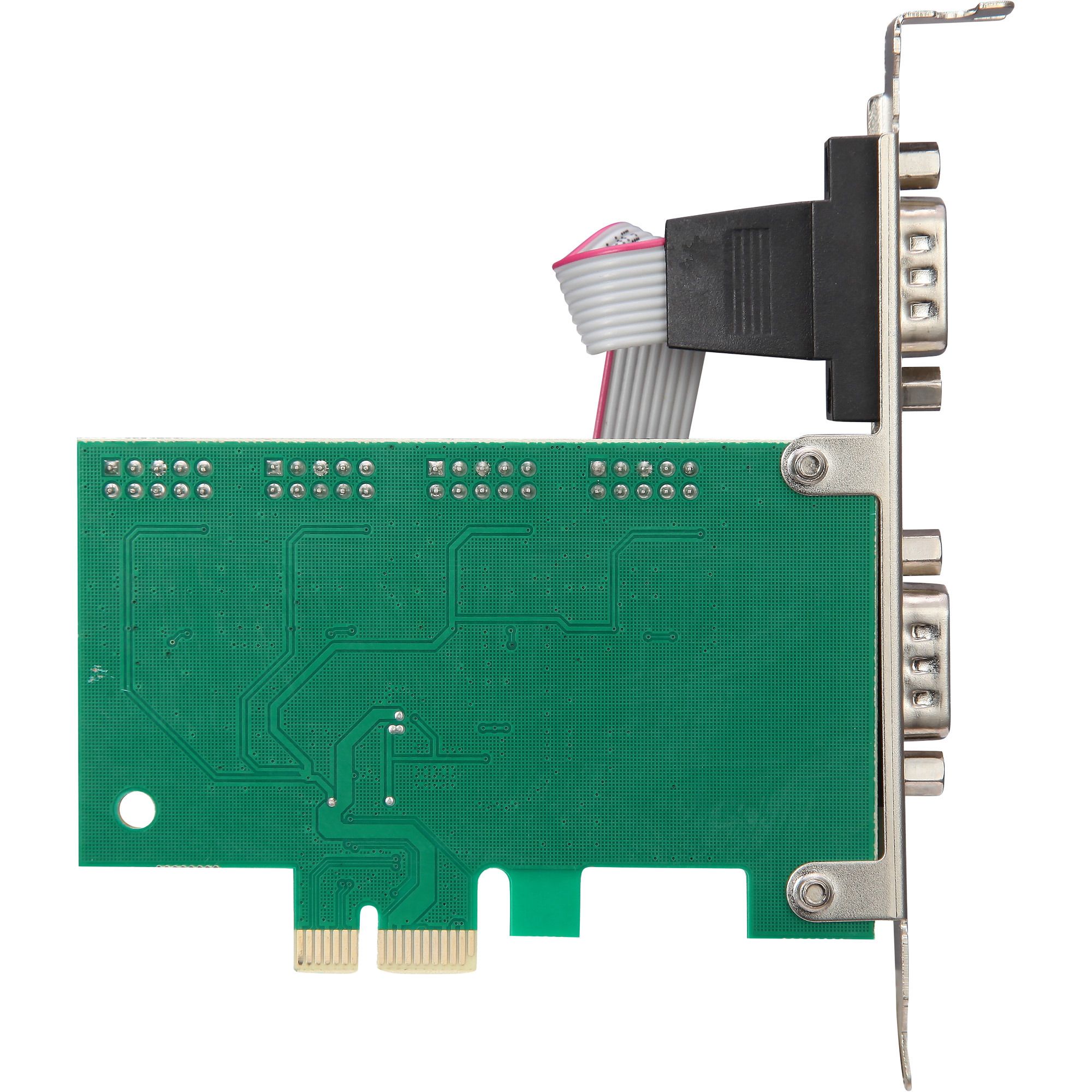

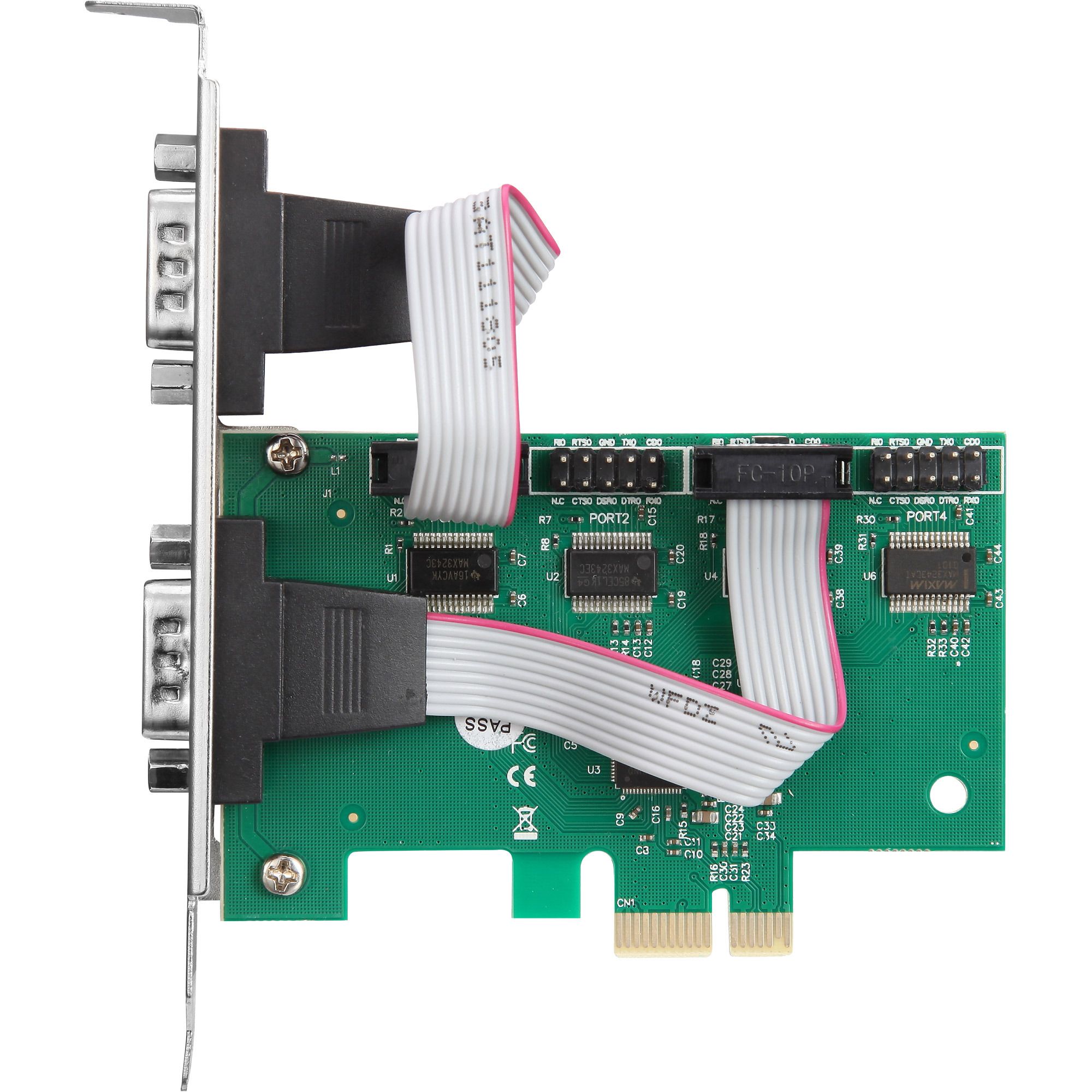

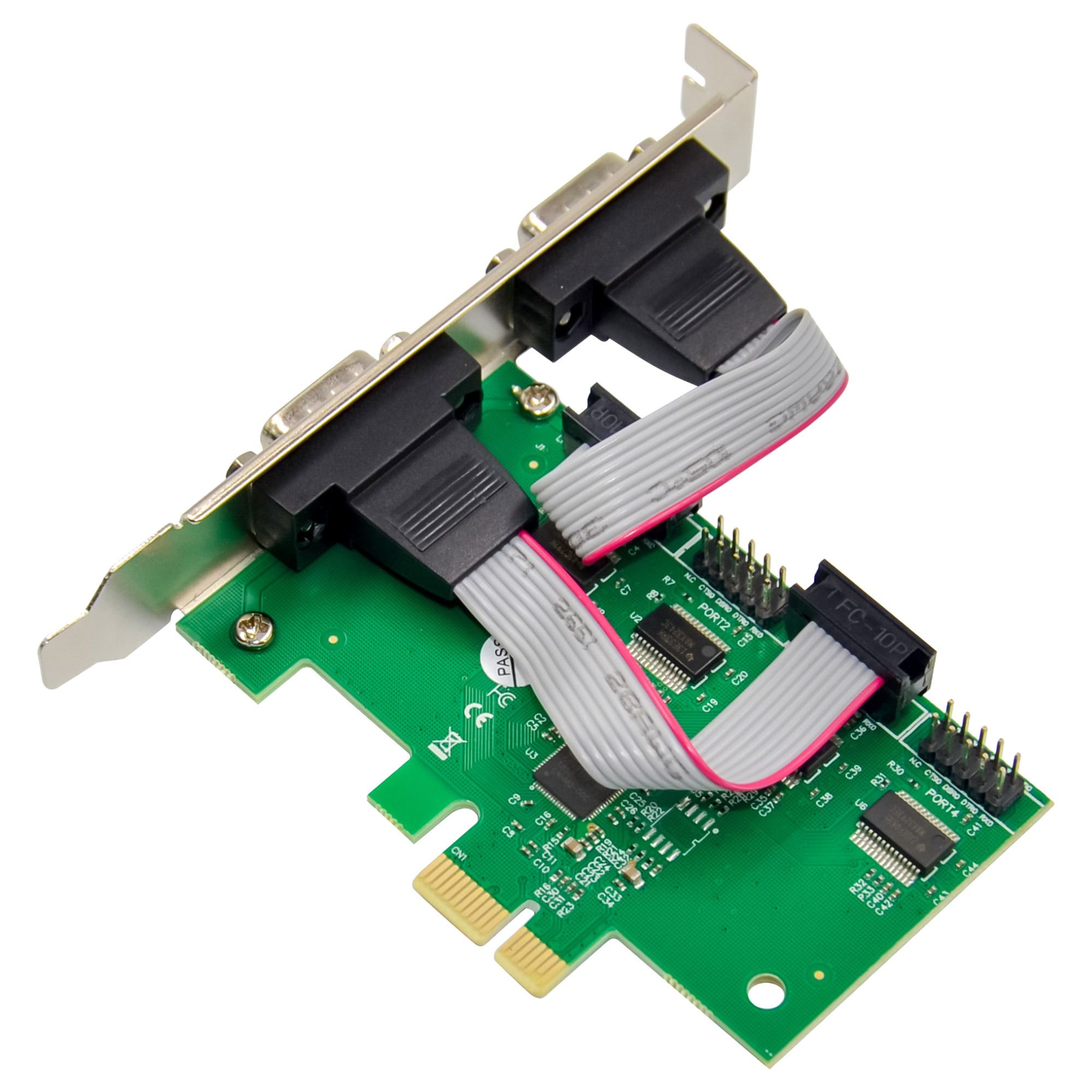

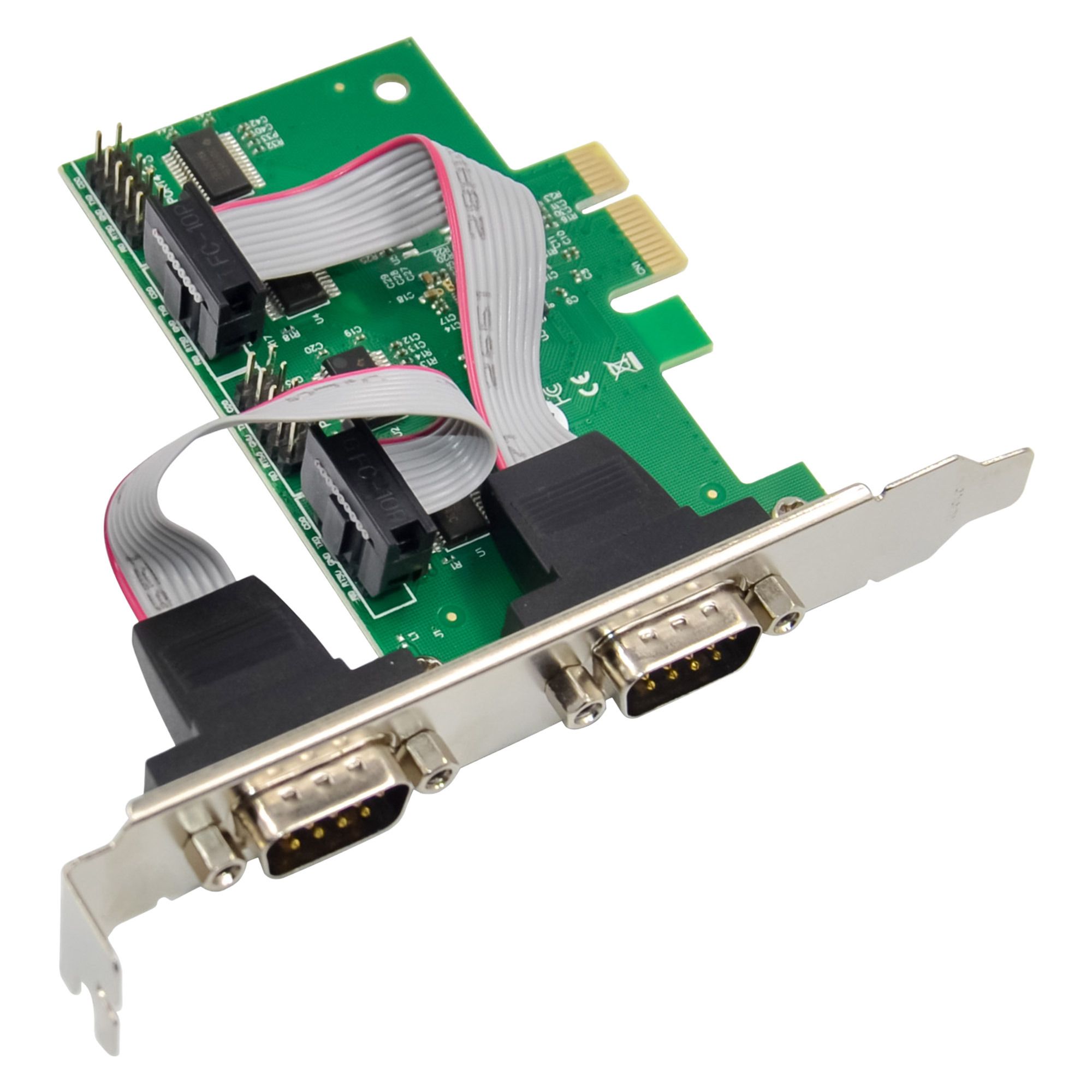

The InLine® PCIe x1 interface card adds four RS-232 interfaces to compatible computer systems and enables the reliable simultaneous operation of multiple serial devices. The card can be easily integrated into desktop PCs, industrial PCs or workstations via the PCI Express x1 interface. It is also compatible with PCIe x4, x8 and x16 slots.

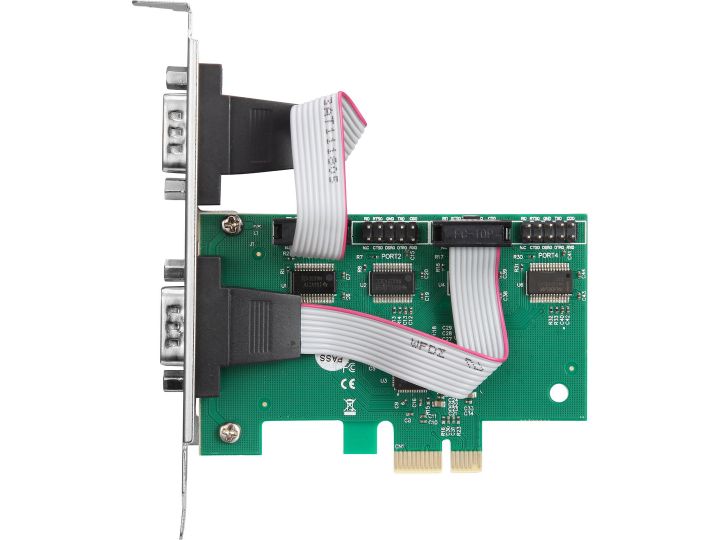

The integrated ASIX AX99100 controller supports full RS-232 modem control signals as well as hardware and software flow control. A 256-byte FIFO transmit and receive buffer per port ensures stable data transmission. Freely configurable baud rates and extensive setting options for data bits and parity allow the card to be adapted to different communication requirements.
The interface card is suitable for connecting traditional serial devices such as PLCs, measurement and test systems, modems, barcode scanners, point-of-sale systems, laboratory equipment or embedded systems. The included low-profile slot brackets also allow for use in compact enclosures.
PCIe standard: PCI Express 2.0 Gen1, x1 lane
Bus interface: PCI Express x1 (compatible with x1, x4, x8 and x16 slots)

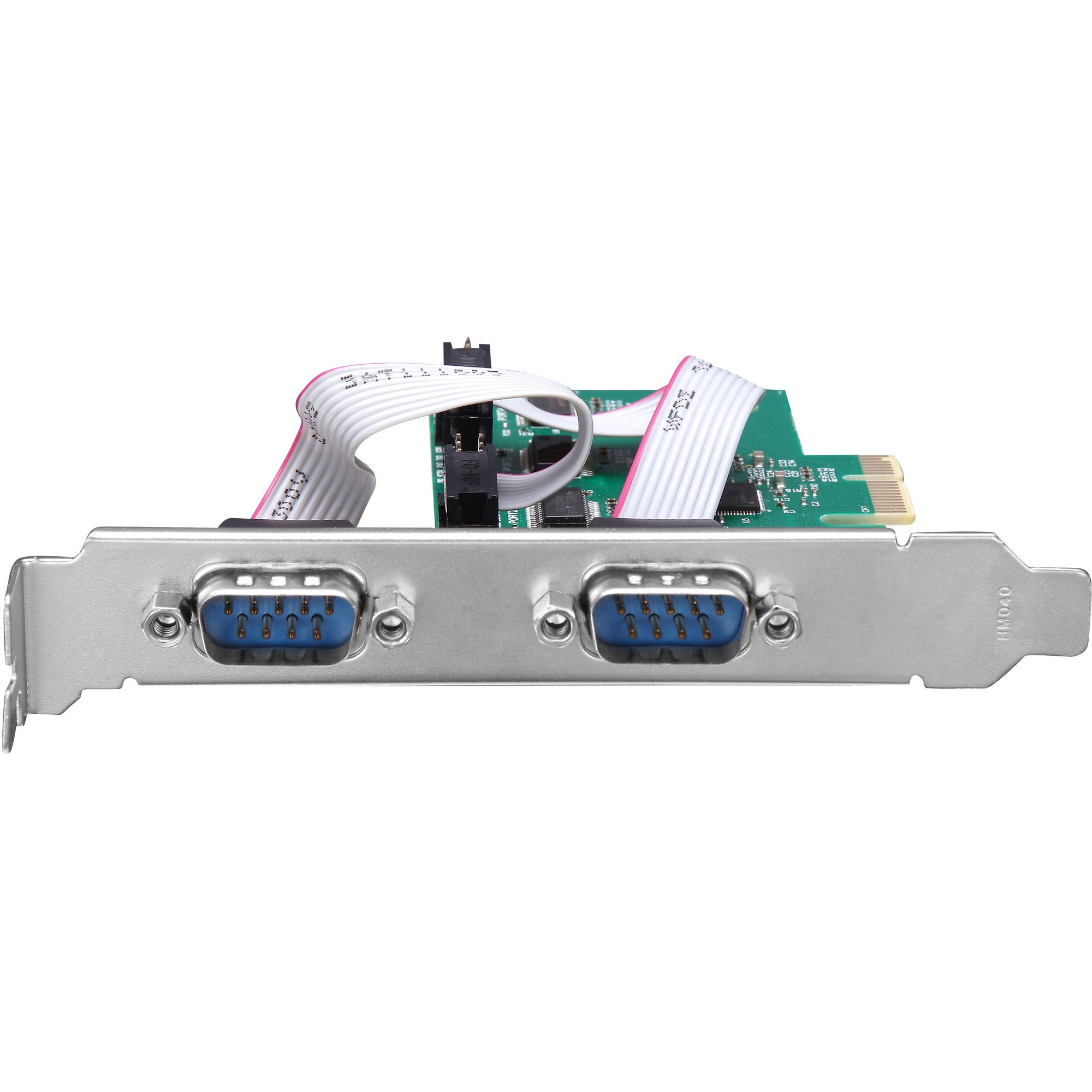

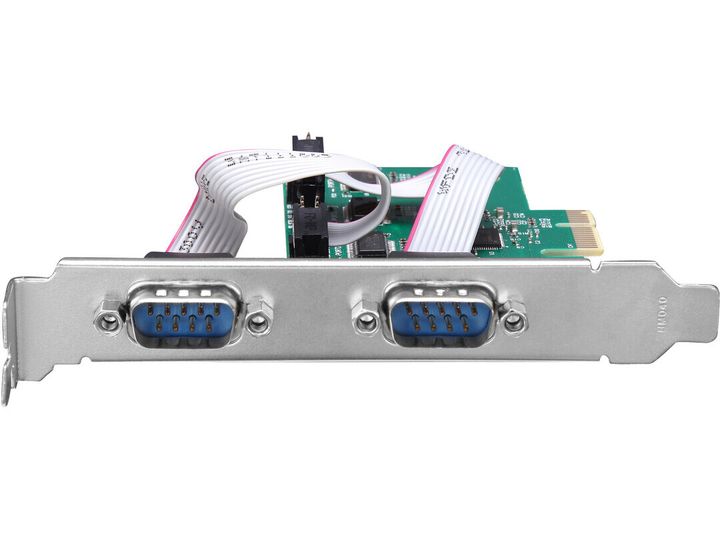

Connections: 4x RS-232, D-Sub 9 connectors (male)
Chipset: ASIX AX99100
Serial data rate: up to 115,200 bits/s per port
UART FIFO: 256-byte transmit and receive buffers per port
Flow control: Hardware and software flow control
Modem control: Full RS-232 modem control
Data bits: 5, 6, 7, 8 or 9 bits
Parity: None, Even, Odd, Mark, Space
Baud rate: Freely configurable via internal PLL
IrDA support: Slow IrDA up to 115,200 bits/s
Power management: PCI Power Management 1.2 with Remote Wake-Up
Supported operating systems: Linux kernel 2.6.x, 3.x and 4.x, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 (32-bit/64-bit), Windows 11 (64-bit)
