METZ CONNECT 11027170, Hvid, 1 stk

Varenr.: [10279687] | Producent: Metz | Model-nr.: 11027170 | EAN: 4251394620473
Fjargoymsla (Veitingartíð til DK goymslu er 5-7 gerandisdagar)
Fjargoymsluvøra, veitingartíð til DK goymslu er 5-7 gerandisdagar. Eftir tað verður vøran send úr DK fyrstkomandi týsdag, og leverað í FO eftirfylgjandi týsdag. Meira kunning
Leveringsmuligheder  - Vælges ved checkout
Heintast
ÓKEYPIS
Útbering.
95,00
DKK 575,00
Uttan MVG 460,00
Prísur við heinting í Tórshavn ella Klaksvík 575,00
Læs yderligere specifikationer og beskrivelse

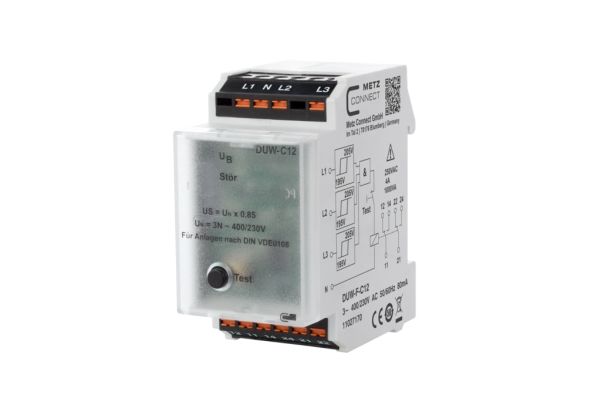

Undervoltage monitor in three-phase mains (each phase against neutral) with fixed threshold value, fixed hysteresis and integrated testing key. It has been developed especially for emergency lighting to din vde 0108. The device can also be used for monitoring an individual phase. All unoccupied inputs have to be connected to the connected phase. If there is an inverse voltage due to the consumer, which exceeds the adjusted threshold value, there is not any fault message. Ok message: relay is activated (contacts 11-14 and 21-24 closed), led is off. Fault message: relay is deactivated (contacts 11-14 and 21-24 open), led is on. Key pressed: relay is being deactivated (contacts 11-14 and 21-24 open), led lights up.
Connection with spring clamp terminal blocks (push-in)
